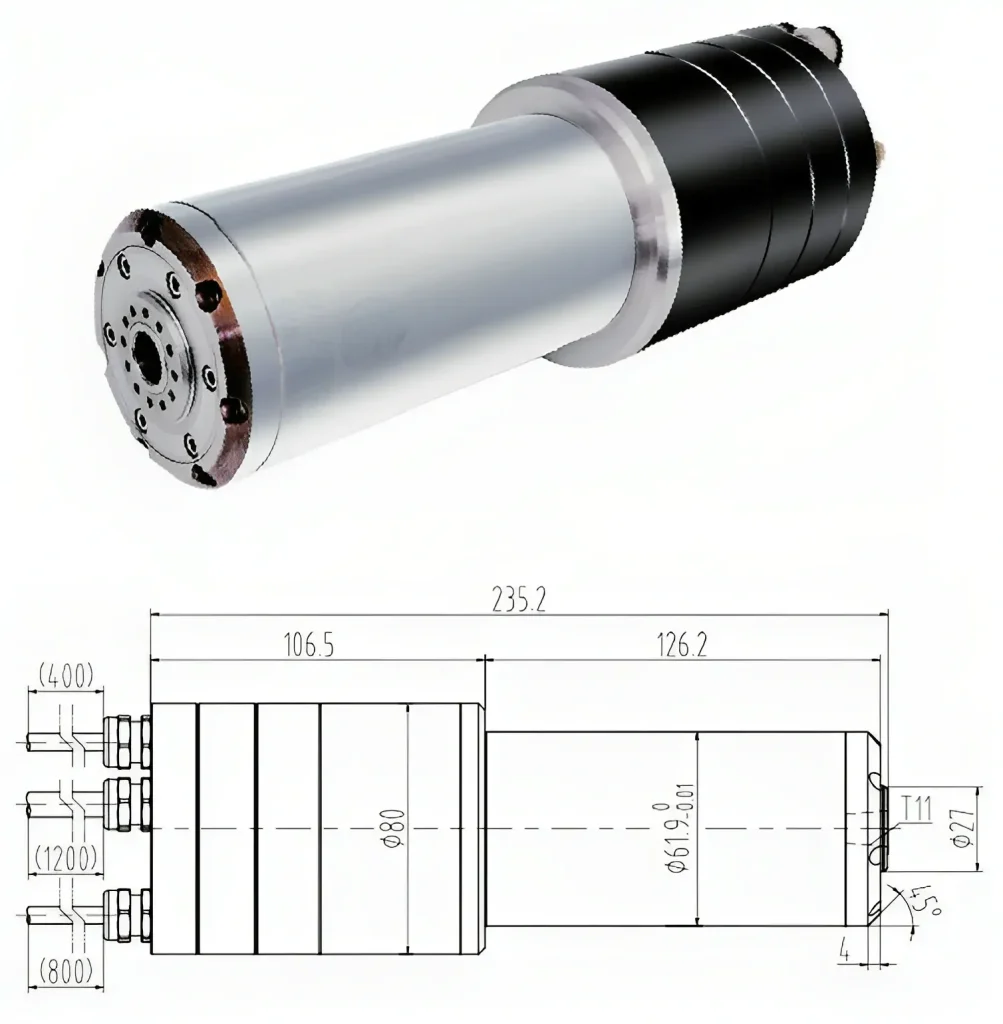

SFG0625-62T4N High-Precision Electric Spindle
Engineered for Ultra-High Gloss & Precision Engraving Applications
Product Overview
The SFG0625-62T4N is a high-performance 62mm-diameter electric spindle meticulously engineered for High-Gloss Machines (Mirror Finishing) and High-Precision Engraving & Milling Centers. Designed to achieve and maintain exceptional surface finishes, it combines a powerful 2.5KW asynchronous motor, ultra-high 60,000 rpm speed, and superior mechanical stability. This spindle delivers the precise, vibration-free performance required for flawless mirror finishes and intricate micro-machining on metals, composites, and advanced materials.
Core Features & Advantages
- Engineered for Perfection: Specifically designed for ultimate surface quality, with minimal runout (≤1.0µm taper face, ≤3.0µm static) and low vibration (≤0.6 mm/s) to ensure flawless mirror finishes.
- High-Speed, High-Power Performance: Delivers 2.5KW of rated power with a maximum speed of 60,000 rpm (1000Hz), providing the ideal balance of cutting force and surface speed for both efficient material removal and fine finishing.
- Robust & Reliable Construction: Features a heavy-duty T11-ER11 tool holder system with a strong 600N drawbar force, ensuring secure tool clamping. Integrated water cooling (≥1.3 L/min) and an air seal function (0.2-0.7 MPa) guarantee thermal stability and protect internal components from contamination.
- Precision Integration: The critical mounting diameter is machined to a precise Φ61.9 mm with a tight tolerance, ensuring perfect alignment and rigidity when integrated into the machine tool structure.
Detailed Technical Specifications
| Parameter Category | Parameter | Specification / Value |
|---|---|---|
| Basic Specifications | Spindle Model | SFG0625-62T4N |
| Motor Type | Asynchronous Induction (2-Pole) | |
| Max. Frequency / Speed | 1000 Hz / 60,000 rpm | |
| Rated Voltage / Current | 220 V / 6.5 A | |
| Rated Power / Torque | 2.5 kW / 0.4 N·m | |
| Tool Holder Type | T11-ER11 | |
| Tool Change Method | Pneumatic | |
| Drawbar Force | 600 ±50 N | |
| Tool Release Travel | 0.5 – 0.7 mm | |
| Performance & Precision | Cylinder Working Pressure | 0.5 – 0.7 MPa |
| Taper Face Runout | ≤ 1.0 µm | |
| Static Radial Runout (50mm from nose) | ≤ 3.0 µm | |
| Dynamic Radial Runout | ≤ 5.0 µm | |
| Vibration Velocity | ≤ 0.6 mm/s | |
| Noise Level | ≤ 70 dBA | |
| Interface & Requirements | Mounting Diameter | φ61.9 mm (Tolerance per spec) |
| Cooling Water Flow (@0.25MPa) | ≥ 1.3 L/min | |
| Air Seal Pressure | 0.2 – 0.7 MPa | |
| Motor Winding Withstand Voltage | 1200 V/min |
Primary Applications
- High-Gloss / Mirror-Finish Machining : Polishing of molds, dies, and surfaces requiring a reflective finish.
- Precision Engraving & Micro-Milling: Fine detailing, texture creation, and high-accuracy contouring.
- Optical & Consumer Electronics Components: Machining of lenses, bezels, and housings where surface quality is critical.
- High-End Prototyping & Finishing: Producing show-quality surface finishes on models and final parts.
